RJ45 Splitters

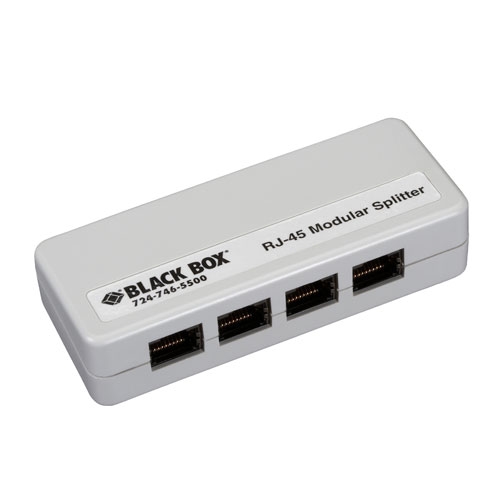

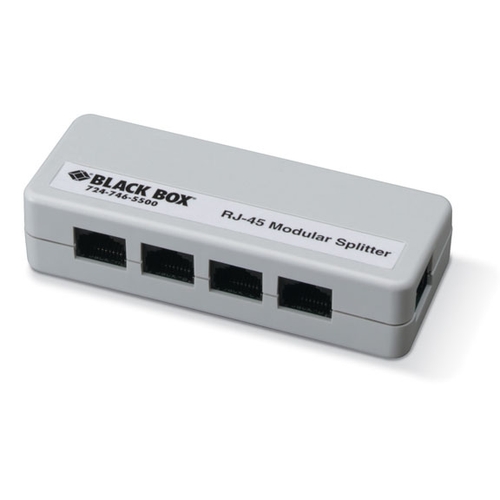

Photo may vary from actual product
FM810-R2: Pinout A, Shielded, Without 6cm cable


RJ45 Splitters


Break one RJ-45 jack into four


  • Break out one RJ-45 modular jack or plug into four jacks.
  • Connections are made via an integral circuit board.

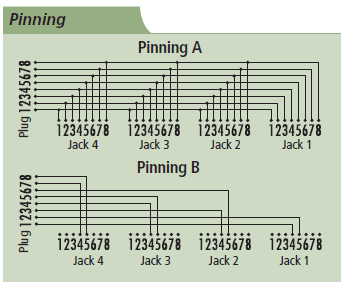

  • See the application diagram below for Pinning A and B.

  Product       Code   Unit price   Quantity
Pinout A
Shielded

Without 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM810-R2

These RJ45 Modular splitters break out one RJ-45 modular jack or plug into four jacks.
Connections are made via an integral circuit board. Two different pinning specifications are available and the splitters are available shielded or unshielded with or without a 6cm cable.
