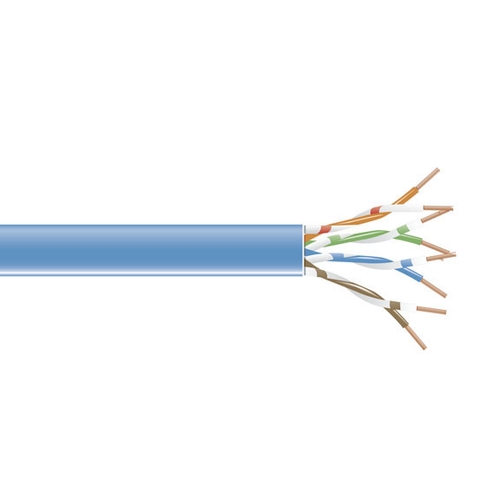

Use this high-quality stranded CAT6 cable to terminate your own patch cables in 1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI, and other high-speed applications. The cables delivers full Power Sum performance an provides full-duplex operation for next-generation applications. Meeting the balance requirements (LCL/LCTL), result in better transmission. Choose between a large variety of colours for perfect cables management.
Attenuation (Maximum) — 23.6/100m @ 100MHz; 34.6 dB/100m @ 200 MHz; 39.1 dB/100m @ 250 MHz

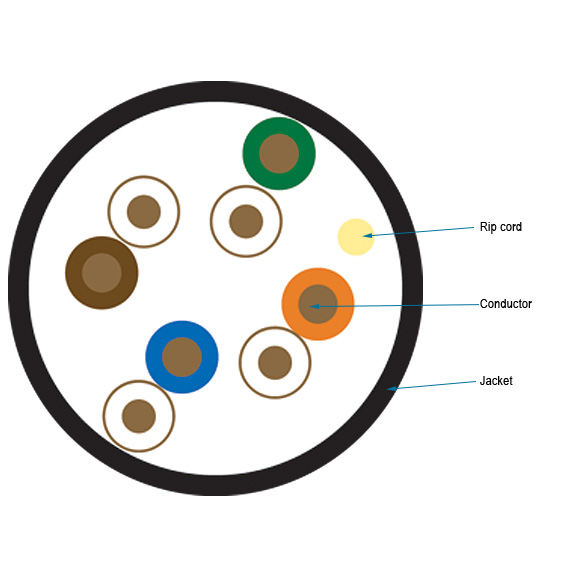

Conductor Gauge — 24 AWG, 7 x 32 stranded copper
Delay Skew (Maximum) — 25 ns/100m
Frequency — Up to 550 MHz
Impedance — 100 ± 15 ohms @ 100 MHz; 100 ± 22 ohms @ 100-550 MHz
Mutual Capacitance — 56 pF/m (nominal)
NEXT (Minimum) — 45 dB/100m @ 100 MHz; 41 dB/100m @ 200 MHz; 39 dB/100 m @ 250 MHz
PS-ACR — 32 dB (typical) @ 100 MHz
PS-NEXT (Minimum) — 43 dB/100m @ 100 MHz; 39 dB/100m @ 200 MHz; 37 dB/100m @ 250 MHz
Resistance (Maximum) — 9.09 ohms/100m
Return Loss (Minimum) — 22.5 dB/100m @ 100 MHz; 21 dB/100 m @ 200 MHz; 20.5 dB/100m @ 250 MHz
Standards — TIA/EIA-568-B.2-1 Category 6
