Store home > Industrial Networking > Converters > Media > Industrial Opto-Isolated Serial to Fiber Converter
ICD114A: Multimode SC

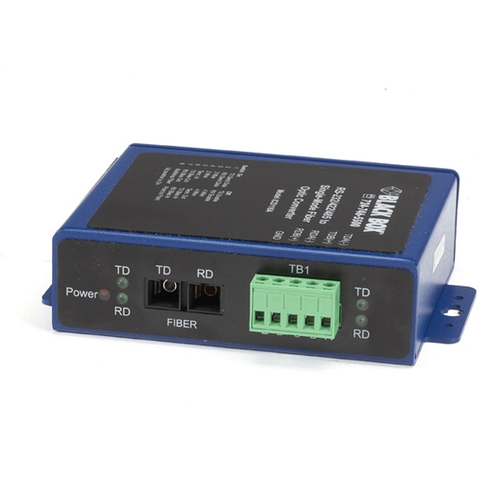

Photo may vary from actual product
Industrial Opto-Isolated Serial to Fiber Converter
ICD114A: Multimode SC
ICD115A: Multimode ST
ICD115A: Multimode ST
ICD116A: Single-mode SC
ICD116A: Single-mode SC


Industrial Opto-Isolated Serial to Fiber Converter


Convert RS-232/422/485 data for extension over fiber in heavy industrial areas.


  • A heavy-duty, industrial-strength serial-to-fiber converter.
  • Converts serial signals for fiber transmission up to 2 km (MM) or 15km (SM).
  • Rugged, IP30-rated metal case for panel mounting.
  • Tolerates temperatures ranging from -40 to +85º C.
  • Designed to withstand both shock and vibration.
  • Boasts 2-kV triple isolation for safeguarding data and equipment.
  • Supports fiber ring communications with 31 other units.
  • Data rates up to 115.2 kbps.
  • DIN rail mountable with optional adapter.

Share |
  Product       Code   Unit price   Quantity


Multimode SC
  Industrial Opto-Isolated Serial to Fiber Converter
Industrial Opto-Isolated Serial to Fiber Converter
  ICD114A
£333.00


Multimode ST
  Industrial Opto-Isolated Serial to Fiber Converter
Industrial Opto-Isolated Serial to Fiber Converter
  ICD115A
£333.00


Single-mode SC
  Industrial Opto-Isolated Serial to Fiber Converter
Industrial Opto-Isolated Serial to Fiber Converter
  ICD116A
£415.00

NOTE: At minimum, must be used in pairs. Power supply not included.

Accessories

  Product     Code   Unit price   Quantity

Rack/Mount Kit
  DIN Rail Adapter for Industrial Opto-Isolated Converters and Repeaters
DIN Rail Adapter for Industrial Opto-Isolated Converters and Repeaters
  ICD11MNT
£8.53

Power Supply
  100-240VAC 0.3A/12VDC 6W Wallmount Power Supply with Bare Leads
100-240VAC 0.3A/12VDC 6W Wallmount Power Supply with Bare Leads
  PS1003-R2
£24.88
