Store home > Networking > LAN > Media Converters > High Speed Desktop > FlexPoint Modular Media Converter

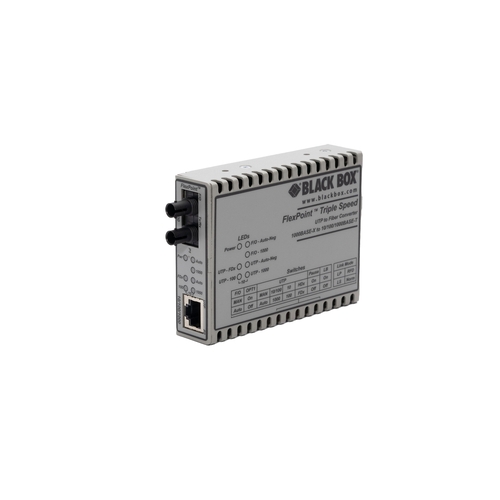

LMC1017A-MMST: Multimode, (1) 10/100/1000Mbps, RJ-45, (1) 1000BASE-SX Multimode, ST, ST, 550m, 110 VAC
Photo may vary from actual product

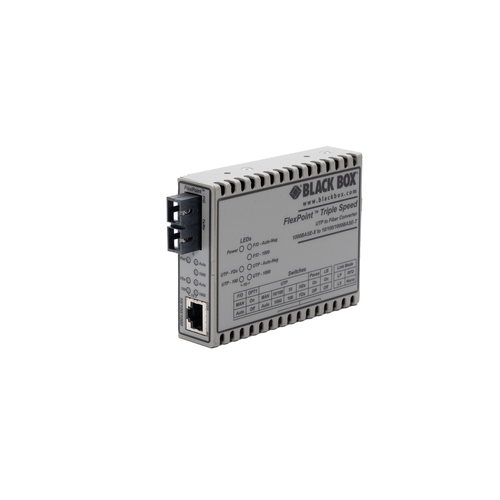

LMC1017A-MMSC: Multimode, (1) 10/100/1000Mbps, RJ-45, (1) 1000BASE-SX Multimode, SC, SC, 550m, 110 VAC
LMC1017A-MMSC: Multimode, (1) 10/100/1000Mbps, RJ-45, (1) 1000BASE-SX Multimode, SC, SC, 550m, 110 VAC
LMC1017A-MMSC: Multimode, (1) 10/100/1000Mbps, RJ-45, (1) 1000BASE-SX Multimode, SC, SC, 550m, 110 VAC


FlexPoint Modular Media Converter


Extend LAN reach with fiber media converters


  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.
  • Compact size.

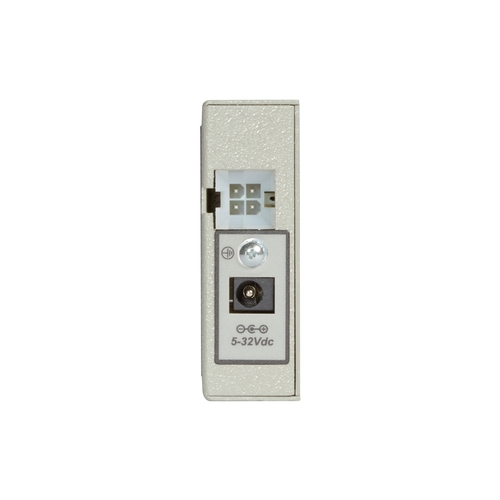

  • Powered by an AC power supply or the optional rackmountable chassis.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • DIP switches enable you to configure port settings.
  • Supports jumbo frames up to 10,240 bytes.
  • Enables you to send data much farther and more securely than what's possible for copper Ethernet.
  • Autonegotiates for speed to achieve the best possible mode of operation.
  • UTP port supports full- and half-duplex operation.
  • To prevent congestion, supports automatic and manual pause function for flow control.
  • Supports jumbo frames up to 10,240 bytes.
  • Remote fault indicators signal loss of link for far-end fault and link fault conditions.
  • Loopback mode supports end-to-end testing.
  • Manual switches give you the option to control port operation.
  • Hardware available for mounting the converter to a wall or a DIN rail.
  • Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
  • RoHS compliant.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code   Unit price   Quantity
Multimode
(1) 10/100/1000Mbps, RJ-45
(1) 1000BASE-SX Multimode, SC
SC
550m

110 VAC
  FlexPoint Modular Media Converter
FlexPoint Modular Media Converter
  LMC1017A-MMSC
£765.00

(1) 1000BASE-SX Multimode, ST
ST
550m

110 VAC
  FlexPoint Modular Media Converter
FlexPoint Modular Media Converter
  LMC1017A-MMST
£563.00

Single-Mode
(1) 10/100/1000Mbps, RJ-45
(1) 1000BASE-LX Single-mode, SC
SC
12km

110 VAC
  FlexPoint Modular Media Converter
FlexPoint Modular Media Converter
  LMC1017A-SMSC
£822.00

(1) 1000BASE-LX Single-mode, ST
ST
12km

110 VAC
  FlexPoint Modular Media Converter
FlexPoint Modular Media Converter
  LMC1017A-SMST
£713.00


Accessories

  Product     Code   Unit price   Quantity

  FlexPoint 14-Slot Power Chassis - 19" chassis, 14 Slots, Single 115-230VAC
FlexPoint 14-Slot Power Chassis
  LMC200
£1,166.00

  FlexPoint 5-Slot - Rackmount tray, 5 Slots, Without power supply
FlexPoint 5-Slot
  LMC205
£152.00

Rack/Mount Kit
  FlexPoint Wallmounting Hardware
FlexPoint Wallmounting Hardware
  LMC206-WALL
£26.24

  DIN Rail Mounting Kit
DIN Rail Mounting Kit
  LMC207-DRM
£66.70

  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
£60.37

  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
£57.62

  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
£86.45

  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
£63.59

  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
£139.00

  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
£56.64

  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403
£69.37
