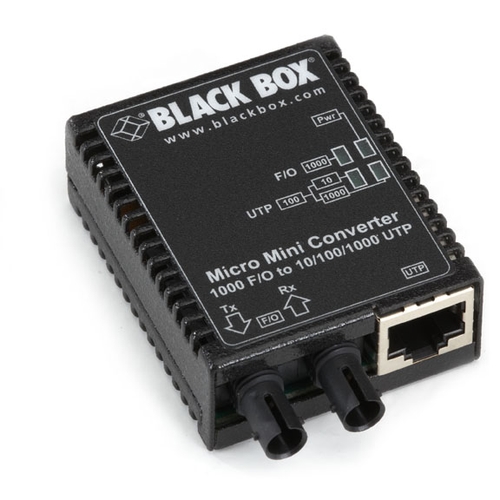

Micro Mini Media Converter 1000FX

The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter accepts SFPs for connection to a variety of Gigabit Ethernet fiber types. Use it with Black Box 1250-Mbps SFPs (LFP411, LFP412, LFP413, LFP414) or any other standard 1250-Mbps SFP. Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.

Environmental —
Operating temperature: 0 to +50° C;
Storage temperature: -40 to +80° C;
Humidity: 5 to 95%, noncondensing
Connectors — (1) RJ-45 10/100/1000-Mbps Ethernet;

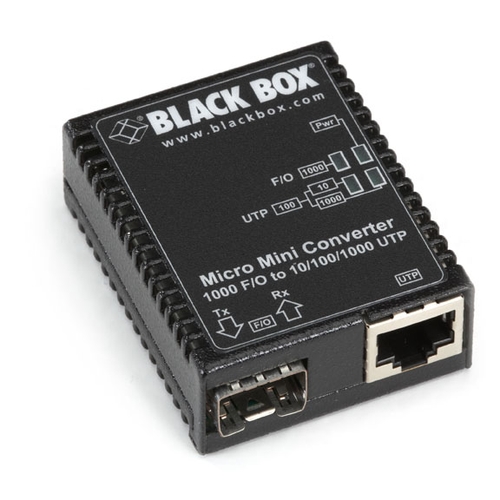

LMC4000AE: (1) USB Type B; (1) SFP

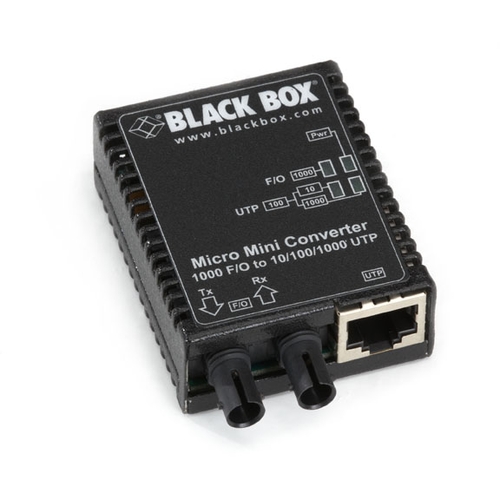

LMC4001AE: (1) USB Type Micro B; (1) pair of ST

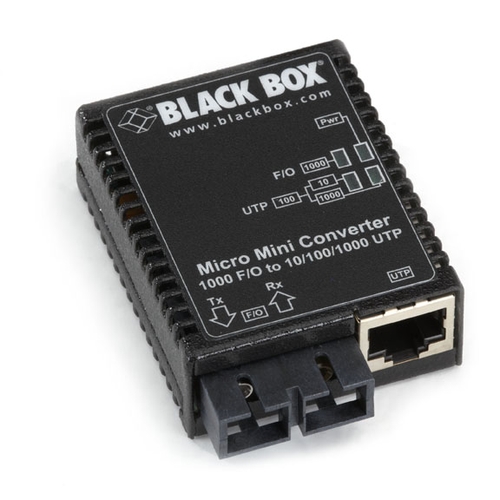

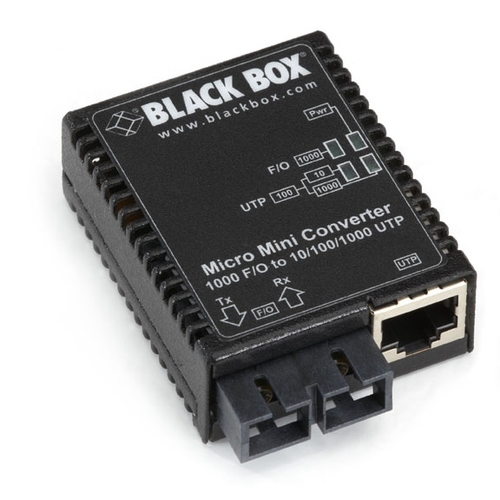

LMC4002AE: (1) USB Type B; (1) pair of SC

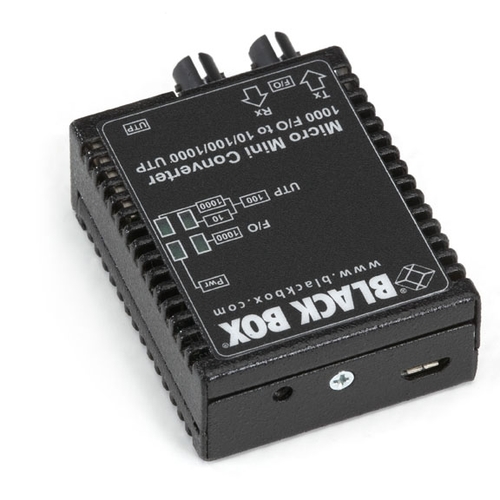

LMC4003AE: (1) USB Type Micro B; (1) pair of ST
Power — 100–240 VAC, 50–60 Hz, 0.01A @ 240 V external power supply or from a PC’s USB port, 0.5 A @ 5 VDC
Size — 2.1(H) x 4.4(W) x 5.7(D) cm
Weight —
Without power adapter: 70.8 g;
With USB cable: 107.7 g;
With AC power adapter (U.S.) and USB: 155.9 g

TAA compliant — YES

1 media converter
1 AC power supply
1 USB power cable

Note: This product works with:

• SFPs (LFP411, LFP412, LFP413, LFP414)
• Micro Mini Media Converter
• Wallmount Bracket (LMC400-WALL)
