Store home > LAN > Media Converters > High Speed Desktop > FlexPoint 10BASE-T/100BASE-TX to 1000BASE-X SFP Media Converter
FlexPoint 10BASE-T/100BASE-TX to 1000BASE-X SFP Media Converter

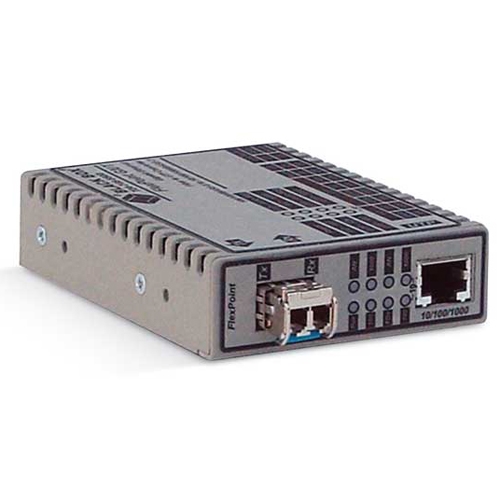

Photo may vary from actual product


FlexPoint 10BASE-T/100BASE-TX to 1000BASE-X SFP Media Converter


Get SFP flexibility when extending copper Gigabit Ethernet over fibre


  • Convert your copper 10-/100-/1000-Mbps network to 100-Mbps or Gigabit-speed fibre
  • Equipped with modular SFP slot for your choice of fibre transceiver.
  • Easy installation and transparent operation—no software required.
  • Enables you to send data much farther and more securely than what’s possible for copper Ethernet.
  • Autonegotiates for speed to achieve the best possible mode of operation.
  • UTP port supports full- and half-duplex operation.
  • To prevent congestion, supports automatic and manual pause function for flow control.
  • Supports jumbo frames up to 10,240 bytes.
  • Remote fault indicators signal loss of link for far-end fault and link fault conditions.
  • Loopback mode supports end-to-end testing.
  • Manual switches give you the option to control port operation.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

Share |
  Product       Code   Unit price   Stock   Quantity
Mode dep. on SFP
(1) 10/100/1000Mbps, RJ-45
(1) 100/1000M SFP
Connector dep. on SFP
range dep. on SFP

AC
  MFP 10-1000 SFP Converter
MFP 10-1000 SFP Converter
  LMC1017AE
£453.60


Accessories

  Product     Code   Unit price   Stock   Quantity

  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
£74.67

  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
£74.67
  99+
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
£78.53
  25
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
£78.53
  7
  SFP, 1250-Mbps - LC, MM 850nm, 550m
SFP, 1250-Mbps
  LFP441
£22.93
  99+
  SFP, 1250-Mbps - LC, Single-mode 1310nm, 20km
SFP, 1250-Mbps
  LFP442
£26.06
  22
  SFP, 1250-Mbps, SGMII - 100m, RJ-45, CATx
SFP, 1250-Mbps, SGMII
  LFP443
£54.13
  99+
  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
£49.78
  99+
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1300-nm Multimode, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
£49.78
  99+
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403
£60.45
  99+
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
£49.78
  999+
  SFP, 1250-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1300-nm Multimode, 2km
SFP, 1250-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP412
£74.67
  99+
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
£55.11
  99+
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 40-km - 1310nm SM LC, 40km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 40-km
  LFP414
£59.95
  14
Rack/Mount Kit
  FlexPoint Wallmounting Hardware
FlexPoint Wallmounting Hardware
  LMC206-WALL
£17.77

  DIN Rail Mounting Kit
DIN Rail Mounting Kit
  LMC207-DRM
£19.25

  FlexPoint 5-Slot - Rackmount tray, 5 Slots, Without power supply
FlexPoint 5-Slot
  LMC205
£103.32

  FlexPoint 14-Slot Power Chassis - 19" chassis, 14 Slots, Single 115-230VAC
FlexPoint 14-Slot Power Chassis
  LMC200
£611.10


Use your FlexPoint 10BASE-T/100BASE-TX to 1000BASE-X SFP Media Converter with these solutions:
