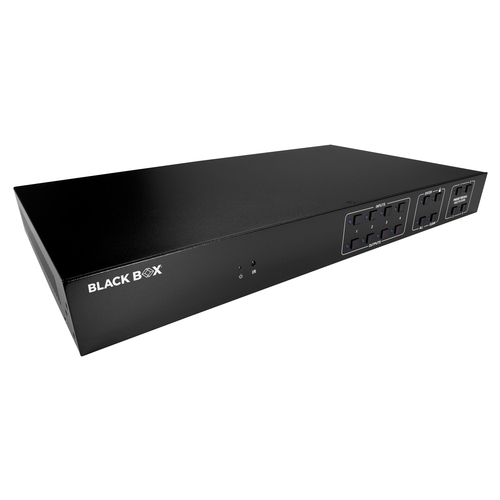

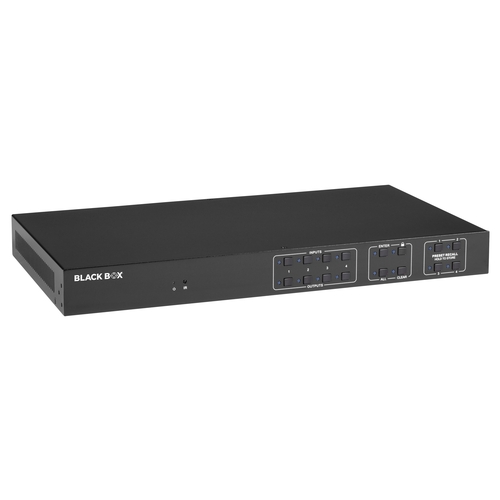

The Video Matrix Switch is a professional 4K HDMI 2.0 Matrix Switch with either 4 or 8 HDMI inputs, 4 or 8 HDMI outputs, and 4 or 8 SPDIF audio outputs. It is designed for switching HDMI 2.0 and HDCP 2.2 compliant signals. It also includes powerful EDID management to ensure reliable AV distribution and routing.

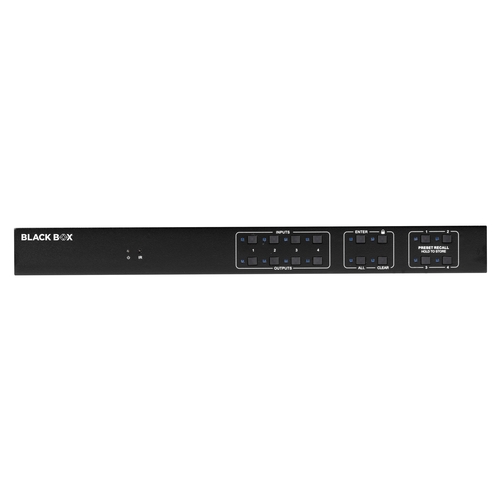

This capable switch supports 4K x 2K @ 60 HZ 4:4:4 and 1080p 3D signals, and is compatible with HDMI 2.0, HDCP 2.2, and is backward compatible with the earlier versions. You can control the unit via the front panel, IR, RS-232, TCP/IP, and web-based GUI.
The matrix switch is designed to be the central component of an AV system. It is ideal for applications where multiple signals with different resolutions must be optimized for displays. It is also suitable for presentation spaces where two displays are needed.
The switch supports audio via stereo audio ports, with ports for both L/R unbalanced audio as well as SPDIF.
Suitable for use with AOC cables (5V, 500mA, 2.5W).
HDMI Support
LPCM 7.1 audio;
Dolby Atmos®;
Dolby® TrueHD;
Dolby Digital® Plus;
DTS:X™;
DTS-HD® Master Audio™ pass-through
Power
4x4 - 18.3W;
8x8 - 24W;
Transmission Distance
4K/60Hz/444 5m;
4K/60Hz/420 10m;
1080p 15m
Digital SPDIF Audio Format
PCM;
Dolby Digital;
DTS;
DTS-HD
Humidity 10 to 90%
Storage Temperature-13 to 158° F (-25 to +70° C)
Operating Temperature23 to 131° F (-5 to +55° C)
Bandwidth 18 Gbps
HDCP Version Up to 2.3
HDMI Version Up to 2.0
HDMI Output Supports up to 5V 500mA for AoC cable
AVS-HDMI2-4X4-R2
Weight 2.6 kg

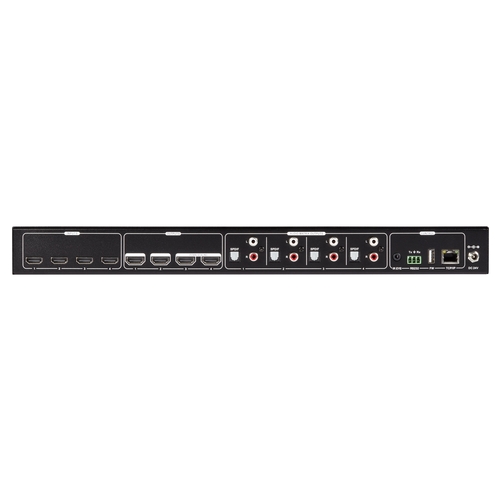

Connectors (Output)
Video: (4) HDMI Type A female;
Digital Audio: (4) Toslink;
Analog Audio: (4) L&R (RCA)
Connectors (Input) (4) HDMI Type A female
Dimensions 4.4H x 43.6W x 23.6D cm

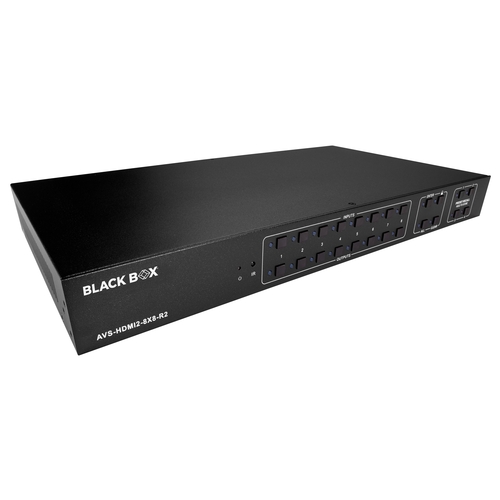

AVS-HDMI2-8X8-R2
Weight 3 kg

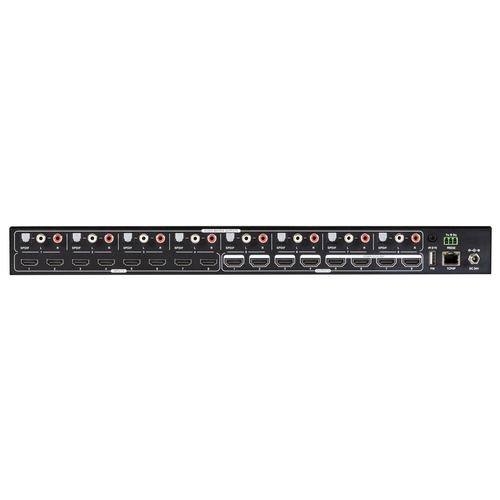

Connectors (Output)
Video: (8) HDMI Type A female;
Digital Audio: (8) Toslink;
Analog Audio: (8) L&R (RCA)
Connectors (Input) (8) HDMI Type A female
Dimensions 4.4H x 43.6W x 23.6D cm

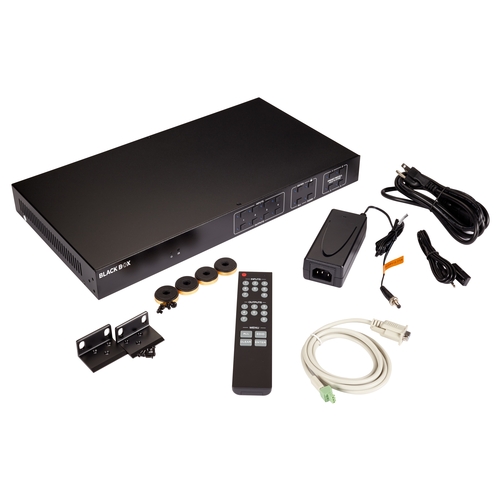

(1) Video Matrix Switcher 4x4 or 8x8
(1) IR Remote
(1) IR Receiver
(1) Power Adaptor
(1) RS-232 Cable (3-pin to DB9)
(2) Mounting Ears
(6) Screws
(4) Plastic Cushions
