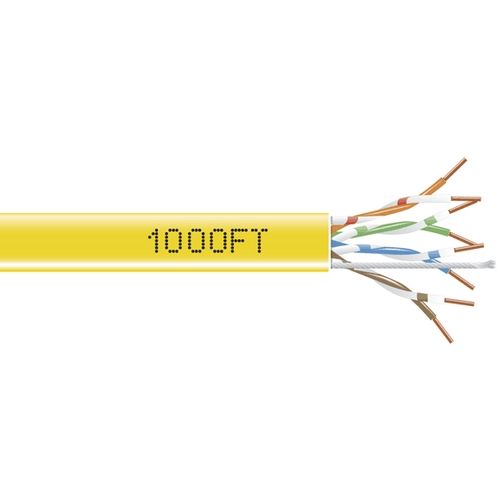

GigaBase 350 CAT5e Solid UTP Bulk Cable
Photo may vary from actual product
EYN855A-PB-1000: PVC, 304.8 m, Yellow
EYN855A-PB-1000: PVC, 304.8 m, Yellow


GigaBase 350 CAT5e Solid UTP Bulk Cable


Ideal for network and HDBaseT applications


  • This cable is part of our GigaBase® CAT5e channel solution.

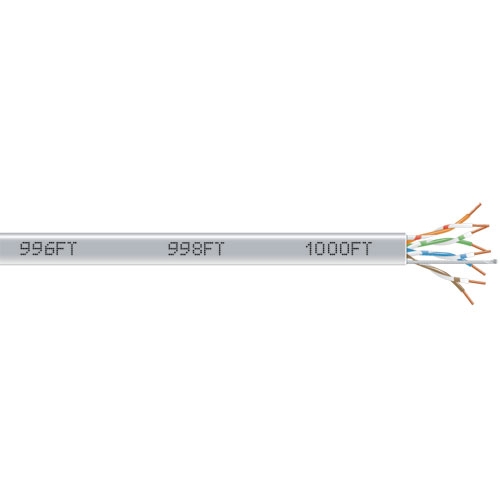

  • Cable is marked in 60-cm increments.
  • Packaged in an easy to handle pull box.
  • Gigabit Ethernet, 622 & 155-Mbps ATM, Fast Ethernet Audio/Video.
  • Rated to 350 MHz: low attenuation and power-sum crosstalk.
  • Sweep tested and characterized to 350 MHz.
  • Extra headroom provides room for growth.
  • CAT5e compliance means dependable compatibility for future applications.

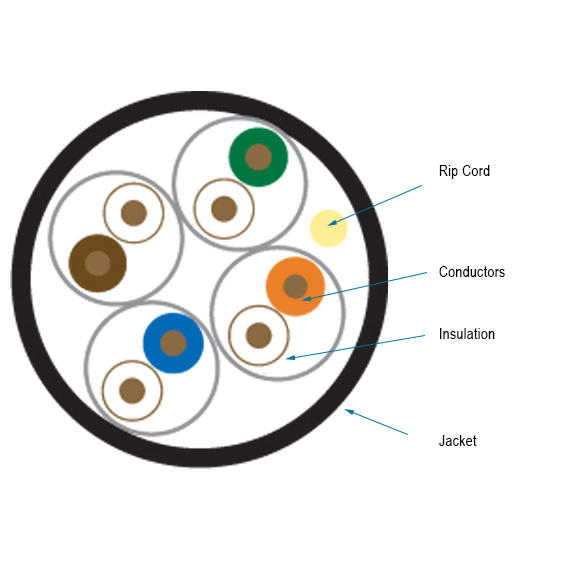

  • Longitudinal rip cord for easy jacket opening.
  • Works well with HDBaseT applications

  Product       Code   Unit price   Quantity
PVC
304.8 m

Yellow
  GigaBase 350 CAT5e Solid UTP Bulk Cable
GigaBase 350 CAT5e Solid UTP Bulk Cable
  EYN855A-PB-1000 Last Time Buy
"Last Time Buy" indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items.

AC Leakage Current Throughout Overall Jacket — AC 1500V < 10 mA
ACR (Minimum at 100-m) — 13.3 dB at 100 MHz
Attenuation (Minimum at 100-m) — 22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 44.9 dB at 350 MHz
Cable Type — 4-pair UTP, 300 V
Capacitance Unbalance (Maximum) — 330 pF/100-m (pair to ground)
Capacitance, Mutual (Maximum) — 56 pF/km
Characteristic Impedance — 1-350 MHz: 100 +/- 15 ohms
Cold Bend Test — -20°C at 4 hours; no crack
Conductor — 24 AWG, solid, bare copper
Conductor Resistance (Maximum) — 93.8 ohm/67°F
Dielectric Strength — AC: 1.5 KV/2 sec
DC Resistance Unbalance (Maximum) — 5%
Delay Skew (Maximum) — 1-350 MHz: 40 nS/100-m
EL-FEXT (Minimum at 100-m) — 23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 12.9 dB at 350 MHz
Input Impedance — 1-100 MHz: 100 +/- 15 ohms
Insulation Material — HDPE; Thickness Average and minimum: 0.007inch; Diamter: .035 +/- 0.0007inch
Insualtion Shrinkback — 150 m/m; 121°C at 1hr. at 9.5 m/m
Jacket — 0.188inch OD
NEXT (Minimum at 100-m) — 35.3 dB at 100 MHz; 30.8 dB at 200 MHz; 27.1 dB at 350 MHz
Outside Diamater — PVC: 0.18inch +/- 0.007inch
Propagation Delay — 536 nS/100-m at 350 MHz
PS-ACR (Minimum at 100-m) — PVC: 10.3 dB at 100 MHz
PS-ELFEXT (Minimum at 100-m) — 20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 9.9 dB at 350 MHz
PS-NEXT (Minimum at 100-m) — 32.3 dB at 100 MHz; 27.8 dB at 200 MHz; 24.1 dB at 350 MHz
Rating Temperature Voltage — 75°C; 300V
Return Loss — 20.1 dB at 100 MHz
Spark Test — 2.5 KV
Velocity Of Propagation (Minimum) — 62.1% at 350 MHz
Weight — 9.5 kg/304.8-m
TAA compliant — YES
